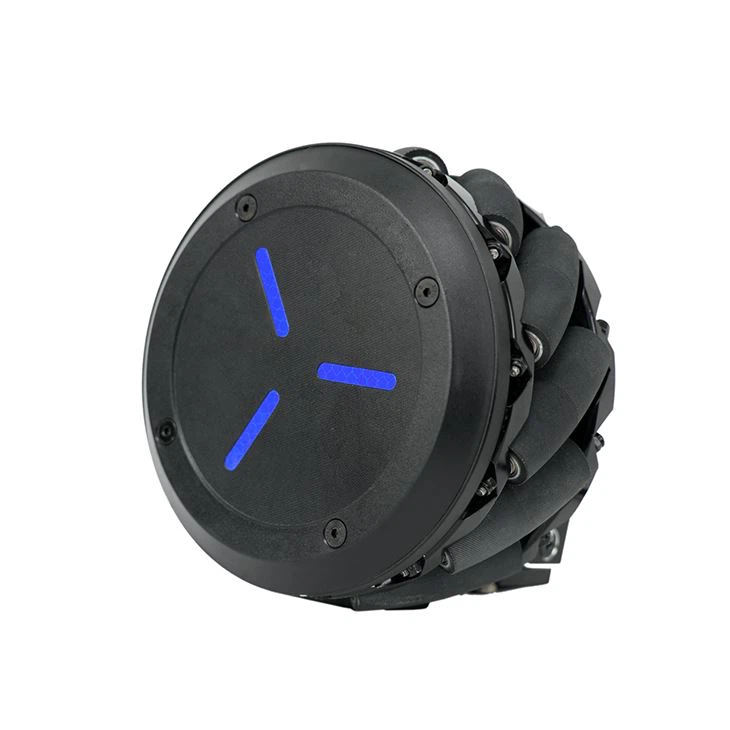

Mecanum Omnidirectional Log

Khoom nta:

RoboCT integrated mecanum wheels yog ib qho tshiab mecanum log, uas muaj xws li hub motor, gearbox, encoder, hall sensor, thiab shock absorber system. All-in-one tsim pab txhawb rau nws lub siab compact qauv thiab yooj yim installation. Thiab qhov kev tsim tshiab no ua rau nws daim ntawv thov scenarios dav dua.

1. Omni-directional log; txawm sideways thiab spin rotation txav

2. Lub cev muaj zog built-in mecanum hub log

3. Compact qauv & yooj yim rau kev sib dhos

4. Muaj zog & ruaj khov

Flexible & maneuverable

Application Scenario:

Kev tswj xyuas meej ntawm lub log mecanum ua rau nws yooj yim rau kev khiav lag luam txawm nyob hauv qhov chaw nqaim thiab txhais tau tias, tshwj xeeb tshaj yog nyob rau hauv kev lag luam hnyav. Nws yog dav siv nyob rau hauv mecanum log neeg hlau, mecanum tsav neeg hlau, mobile robots, warehousing thiab logistics robots, AGV, AMR, ntse chaw nres tsheb cov cuab yeej, intralogistics robots thiab lwm yam teb kom tau raws li cov kev xav tau ntawm txawv industries xws li kev lag luam, kev tshawb fawb, kev lag luam, kho mob, lwm yam.

Technical Parameters

Qauv	CTM 300-7	CTM300-7R			Qauv	CTM 300-7	CTM300-7R
Duab					Rated Output Ceev (rpm)	150	81	130	175
Txoj kab uas hla	180 MM ib	180 MM ib			Tsis muaj load ceev (rpm)	400	113	164	212
Roller Khoom	Casting Polyurethane	Casting Polyurethane			Rated Torque (NM)	7	16
Rated Payload	200 KG	300 KG			Peak Torque (NM)	10	30
Max Payload	300 KG	400 KG			Gearbox	×	√
Rated voltage (V)	24-48	24	36	48	Encoder	Incremental Sib Nqus	Incremental Sib Nqus
Rated zog (W)	173	137	219	295		4096 Ib	4096 Ib
Kev ua tau zoo	78 feem pua	76 feem pua	80 feem pua	82 feem pua	Hall Sensor	√	√
Rated tam sim no (A)	12.4	7.55	7.57	7.52	Ambient Temp. (degree)	-20~55	-20~55

Txog RoboCT:

RoboCT nrhiav tau nyob rau hauv 2017, yog ib tug technology-tsav enterprise, siv technology innovation raws li lub core tsav quab yuam, thiab cog lus rau exoskeleton neeg hlau tshuab, neeg hlau core Cheebtsam thiab ntse tswj technology. RoboCT muaj ntau dua 140 txoj cai muaj tswv yim ywj pheej thiab ntau dua 30 khoom plig hauv tsev thiab txawv teb chaws. RoboCT motorized mecanum log, mecanum mobile robot, precision motion control and robot core Cheebtsam pab ntau tshaj 30 lub teb chaws thoob ntiaj teb. CE, ISO9001, ISO14001, ISO45001, ISO27001, ISO13485, thiab ISO 20000 tau ntawv pov thawj.

FAQ:

1) Dab tsi yog suav nrog rau ib lub teeb RoboCT mecanum log?
--Qhov txawv ntawm SS mecanum log ntawm lwm tus neeg xa khoom, uas tsis muaj lub cev muaj zog thiab lwm yam khoom siv hluav taws xob sab hauv. Ib txheej RoboCT integrated mecanum log muaj xws li 4 pcs txhuas mecanum log, uas integrates lub cev muaj zog, gearbox (hauv CTM300-7R), encoder, hall sensor, thiab shock absorber system nyob rau hauv txhua lub log.

2) Lub Hoobkas lossis cov tub luam?
--Peb muaj peb lub Hoobkas tshaj 4000 square meter. Tsim cov log tsheb mecanum, hub lub cev muaj zog, neeg hlau sib koom, mecanum neeg hlau, thiab exoskeleton neeg hlau.

3) Vim li cas kuv thiaj yuav tau lub log mecanum los ntawm RoboCT?
--RoboCT yog lub tuam txhab neeg hlau ua lag luam nyob hauv Suav teb, ntau tshaj 20 R&D engineers hauv tsev, pab txhawb rau lub log mecanum super-compact, uas ua rau koj tuaj yeem sib sau ua ke thiab siv tau yooj yim heev. Mecanum log tuaj yeem txav mus rau txhua qhov kev taw qhia, yog ua los ntawm cov khoom siv zoo aluminium los ntawm kev ua haujlwm, muaj zog thiab ruaj khov. Peb muaj kev paub txog engineering thiab kev txhawb nqa, ua haujlwm tshaj 30 lub teb chaws rau 10 xyoo.

4) Lub sijhawm khoom xa tuaj yog dab tsi?
--15 hnub rau cov qauv thiab ntau lawm, thov hu rau peb kom paub meej cov ntaub ntawv. Feem ntau los ntawm huab cua nthuav qhia FedEx, DHL, UPS ...
