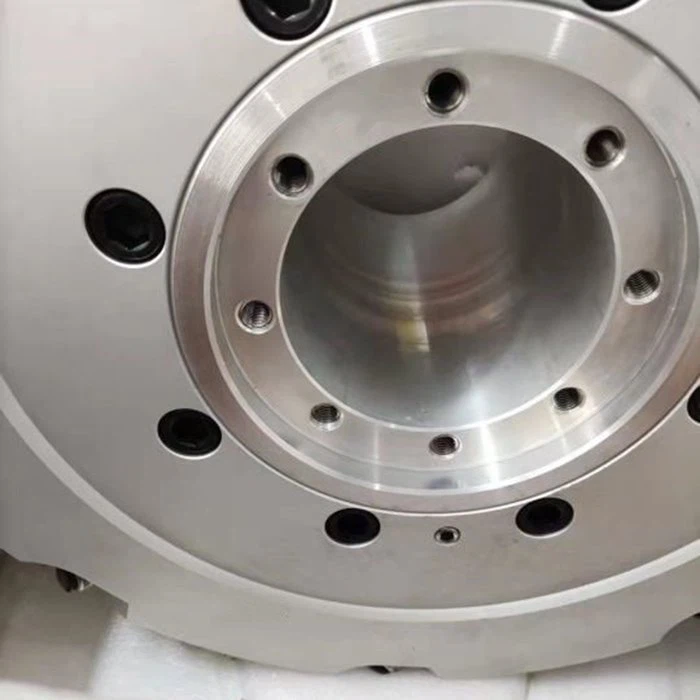

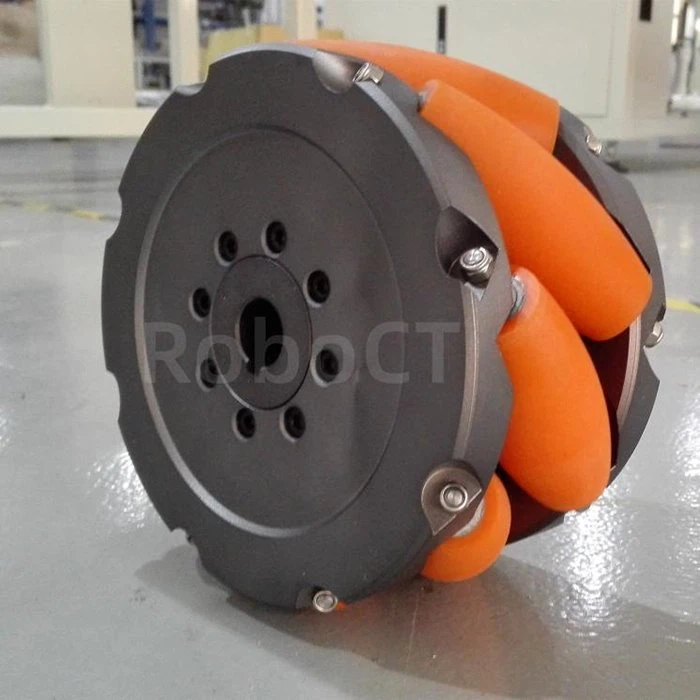

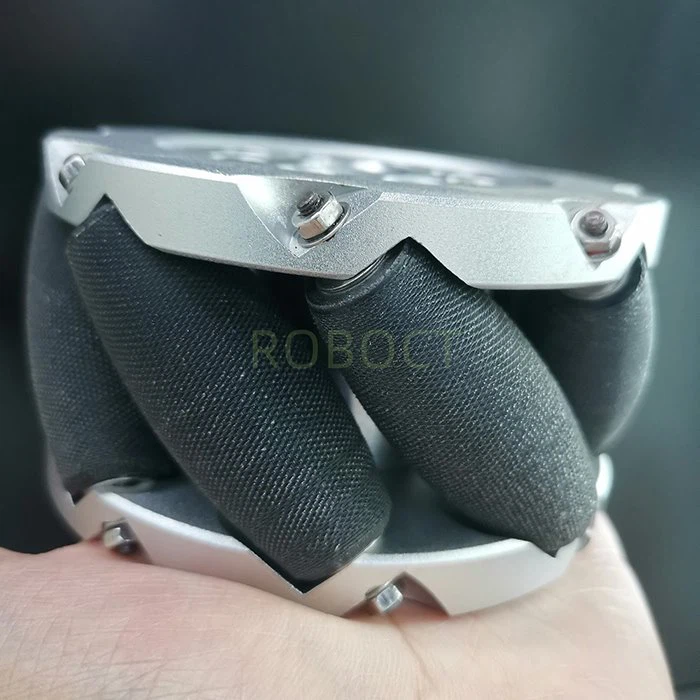

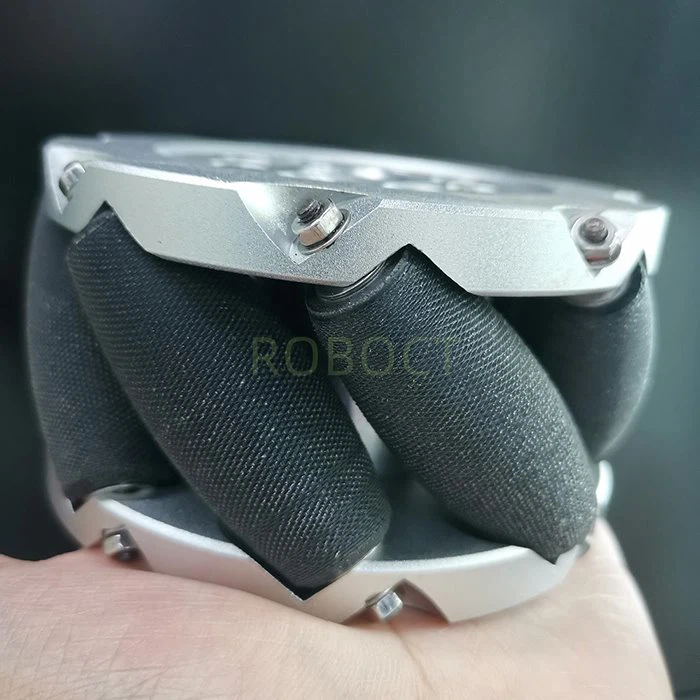

Txhua Qhov Loj Omnidirectional Mecanum Log
Muaj los ntawm 76MM txog 609MM txoj kab uas hla, los ntawm 75kg txog 20,000kg payload.
Xa kev nug
Product Details ofTxhua Qhov Loj Omnidirectional Mecanum Log
Txhua Qhov Loj Omnidirectional Mecanum Wheels Nta:
1.Omni-directional log; txawm sideways thiab spin rotation txav
2.Durable cov ntaub ntawv, tshaj 15, 000km lifespan
3. Muaj zog & ruaj khov
4.Flexible & maneuverable
5.Customizable mounting dimension
Technical Parameter | |
CTM Mecanum Log | CTM 254 N |
Txoj kab uas hla (mm) | 254 |
Dav (mm) | 128 |
Qty ntawm Roller (pcs) | 8 |
Hom Bearings | 2 |
Qty ntawm Bearings | 32 |
Khoom siv ntawm Sab Phaj | Auminum alloy 6061 |
Khoom siv ntawm Roller | Casting Polyurethane |
Mount Hom | Keyway los yog Flange |
Max Static Payload (kg / 4 lub log) | 2,000 |
Max Dynamic Load (kg / 4 lub log) | 1,500 |
Casting PU Roller Physical Property Report | ||||
Qauv No. | A | B | C | D |
NCO Content percent | 4.5±0.2 | 6.2±0.2 | 5.0±0.2 | 4.3±0.2 |
Lub cev lub cev ntawm 20 degree | Colorless pob tshab kua | dawb khoom | Colorless pob tshab kua | dawb khoom |
MOCA 100g Prepolymer Dosage/g | 13 | 18 | 14.5 | 12.5 |
Viscosity (85ºC) / mPa·s | 350 | 480 | 450 | 1400 |
Mixing kub / degree (prepolymer / MOCA) | 80/120 | 80/120 | 80/120 | 80/120 |
gel lub sij hawm / min | 3.5 | 6 | 3.5 | 4 |
Tom qab kho lub sijhawm (100ºC) / h | 10 | 10 | 10 | 10 |
Hardness (Shore A) | 85±2 | 95±1 | 89±2 | 90±1 |
100 feem pua tensile stress/MPa | 6.5 | 12.8 | 8.9 | 6.1 |
300 feem pua tensile stress/MPa | 13.5 | 36.3 | 14.6 | 11.4 |
Tensile zog / MPa | 27 | 48 | 31 | 48 |
Elongation ntawm tawg / feem pua | 450 | 350 | 460 | 650 |
Tear zog (lub kaum sab xis) / (KN / m) | 54 | 95 | 73 | 99 |
Tear zog (trousers) / (KN / m) | 15 | 33 | 25 | 42 |
Rov qab / feem pua | 30 | 47 | 30 | 37 |
Qhov ceev (25ºC) (g / cm3) | 1.12 | 1.13 | 1.14 | 1.27 |
DIN hnav/mm³ | 123 | 38 | 135 | 44 |
Full Size Hom | ||
Qauv | Txoj kab uas hla | Max Payload |
CTM 076 N | 76 hli / 3 " | 75 KG |
CTM 100 N | 100MM / 4 " | 200 KG |
CTM 120 N | 120 MM | 300 KG |
CTM 152 N | 152 hli / 6 " | 500 KG |
CTM 175 N | 175MM / 7 " | 600 KG |
CTM 203 N | 203 hli / 8 " | 800 KG |
CTM 228 N | 228 hli / 9 " | 1T |
CTM 254 N | 254 hli / 10 " | 1.5T |
CTM 280 N | 280 hli / 11 " | 2T |
CTM 305 N | 305 hli / 12 " | 3T |
CTM 330 N | 330 hli / 13 " | 3.5T |
CTM 355 N | 355 hli / 14 " | 4.5T |
CTM 375 N | 3 75mm | 5T |
CTM 406 N | 406 hli / 16 " | 6T |
CTM 457 N | 457 hli / 18 " | 8T |
CTM 475 N | 4 75mm | 8.5T |
CTM 490 N | 4 90mm | 9T |
CTM 508 N | 508 hli / 20 " | 10T |
CTM 558 N | 558 hli / 22 " | 15T |

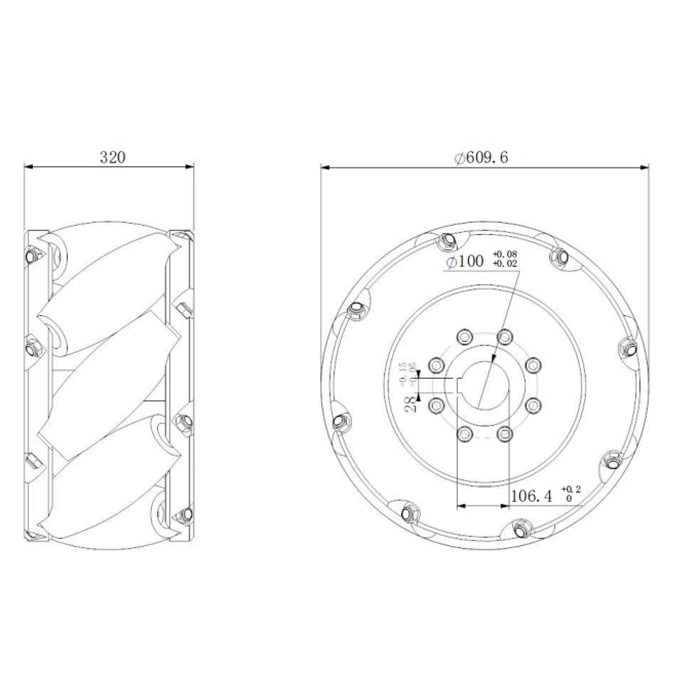

CTM 609 N | 609 hli / 24 " | 20T |
Hais txog RoboCT
RoboCT nrhiav tau nyob rau hauv 2017, yog ib tug technology-tsav enterprise, siv technology innovation raws li lub core tsav quab yuam, thiab cog lus rau exoskeleton neeg hlau tshuab, neeg hlau core Cheebtsam thiab ntse tswj technology. RoboCT muaj ntau dua 140 txoj cai muaj tswv yim ywj pheej thiab ntau dua 30 khoom plig hauv tsev thiab txawv teb chaws. RoboCT motorized mecanum log, mecanum mobile robot, precision motion control and robot core Cheebtsam pab ntau tshaj 30 lub teb chaws thoob ntiaj teb. CE, ISO9001, ISO14001, ISO45001, ISO27001, ISO13485, thiab ISO 20000 tau ntawv pov thawj.
FAQs
1) Koj puas tuaj yeem ua kev cai?
--Yog lawm, peb muaj ntau tshaj 30 tus kws tshaj lij los pab koj tsim tshwj xeeb.
2) Lub Hoobkas lossis cov tub luam?
--Peb muaj peb lub Hoobkas tshaj 4000 square meter. Tsim cov log tsheb mecanum, hub lub cev muaj zog, neeg hlau sib koom, mecanum neeg hlau, thiab exoskeleton neeg hlau.
3) Lub sijhawm khoom xa tuaj yog dab tsi?
--15 hnub rau cov qauv thiab ntau lawm, thov hu rau peb kom paub meej cov ntaub ntawv. Feem ntau los ntawm huab cua nthuav qhia FedEx, DHL, UPS ...
