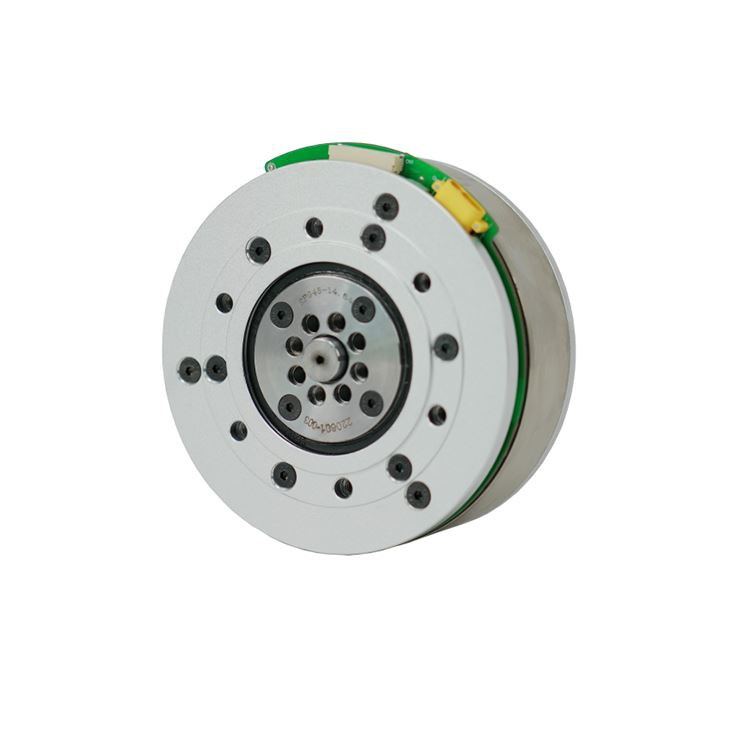

Integrated Robot Joint Module
Nqe lus piav qhia:
(1) Compact: 90MM txoj kab uas hla; built-in gearbox, encoder thiab Hall sensor;
(2) Precise Control: tswj tau yooj yim thiab meej qhov chaw;
(3) Lub teeb yuag: 960g ultra-lub teeb hnyav, khaws cov neeg hlau kom lub teeb li sai tau;
(4) Siv tau yooj yim: tuaj yeem txuas ncaj qha nrog tus neeg hlau.
Application Scenario:
(1) Robotics: neeg hlau bionic, sib koom tes neeg hlau, mecanum mobile neeg hlau, neeg hlau caj npab, thiab lwm yam .;
(2) Kev kho mob: exoskeleton neeg hlau, kws kho mob neeg hlau, thiab lwm yam .;
(3) Warehousing & Logistics: AGV, AMR, palletizing neeg hlau, rooj plaub tuav neeg hlau, intralogistics neeg hlau, thiab lwm yam .;
(4) Kev Pabcuam Neeg Hlau: neeg hlau hauv tsev, tu neeg hlau, thiab lwm yam.
 |
Technical Parameters:
| Qauv No. | JA090 M | Qauv No. | JA090 M | ||
Txoj kab uas hla (mm) | 90 | Rated Torque Qhov hnyav piv (Nm / kg) | 17 | ||
Dav (mm) | 38 | Ncej Numbers (pairs) | 21 | ||
Qhov hnyav (kg) | 0.96 | 20 degree Kab Resistance | 0.13 | ||
Rated Torque (NM) | 16 | Kv (rpm/V) | 66.67 | ||
Peak Torque (NM) | 30 | Kt (Nm/A) | 0.15 | ||
Peak tam sim no (A) | 15 | Gear Ratio | 14.64 | ||
Rated voltage (V) | 24 | 36 | 48 | Noise Limit (dB) | <> |
Rated Ceev (RPM) | 81 | 130 | 175 | Servo Tsav | Tsis muaj |
Tsis-Load Speed (RPM) | 113 | 164 | 212 | Kev daws teeb meem encoder | 4096 |
Rated zog (W) | 137 | 219 | 295 | Hall Sensor | YOG |
Rated tam sim no (A) | 7.55 | 7.57 | 7.52 | ||
| Motor Rated Efficiency | 75.6% ua | 80.4% ua | 81.7% ua | ||
Txog RoboCT:
 |  |
RoboCT nrhiav tau nyob rau hauv 2017, yog ib tug technology-tsav enterprise, siv technology innovation raws li lub core tsav quab yuam, thiab cog lus rau exoskeleton neeg hlau tshuab, neeg hlau core Cheebtsam thiab ntse tswj technology. RoboCT muaj ntau dua 140 txoj cai muaj tswv yim ywj pheej thiab ntau dua 30 khoom plig hauv tsev thiab txawv teb chaws. RoboCT motorized mecanum wheel, mecanum mobile robot, precision motion control and robot core components pab ntau tshaj 30 lub teb chaws thoob ntiaj teb. CE, ISO9001, ISO14001, ISO45001, ISO27001, ISO13485, thiab ISO 20000 tau ntawv pov thawj.
FAQ:
1) Dab tsi yog suav nrog rau ib lub teeb RoboCT sib koom ua ke?
--Ib txheej muaj xws li lub cev muaj zog, gearbox, encoder, Hall sensor, thiab servo tsav system (JA110).
2) Vim li cas kuv thiaj yuav tsum yuav lub cev muaj zog los ntawm RoboCT?
--RoboCT yog lub tuam txhab ua lag luam neeg hlau nyob hauv Suav teb, tshaj 20 R&D engineers nyob rau hauv-tsev, pab txhawb lub super-compact high torque motor, uas ua rau koj sib sau ua ke thiab siv tau yooj yim heev. Peb muaj kev paub txog engineering thiab kev txhawb nqa, ua haujlwm tshaj 30 lub teb chaws rau 10 xyoo.
3) Lub Hoobkas lossis cov tub luam?
--Peb muaj ntau tshaj 4000 square meter Hoobkas, ua neeg hlau sib koom ua ke lub cev muaj zog thiab lwm yam khoom.
4) Lub sijhawm khoom xa tuaj yog dab tsi?
--15 hnub rau cov qauv thiab ntau lawm, thov hu rau peb kom paub meej cov ntaub ntawv. Feem ntau xa los ntawm huab cua nthuav qhia FedEx, DHL, UPS ...
